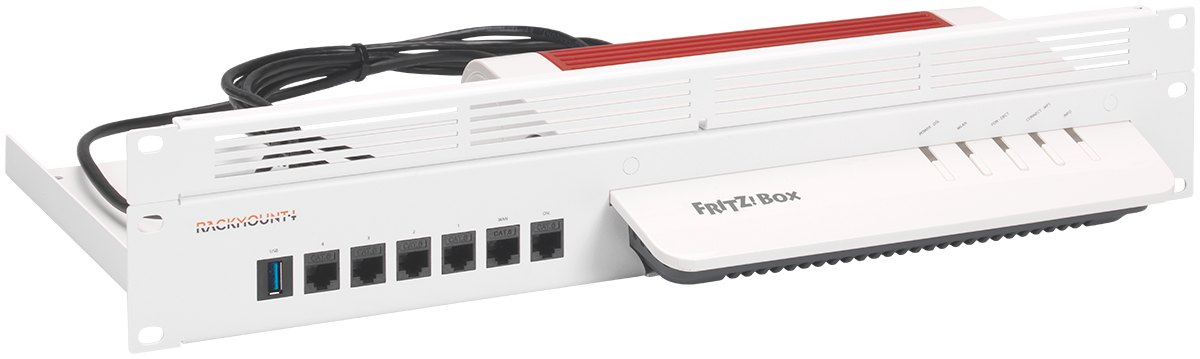

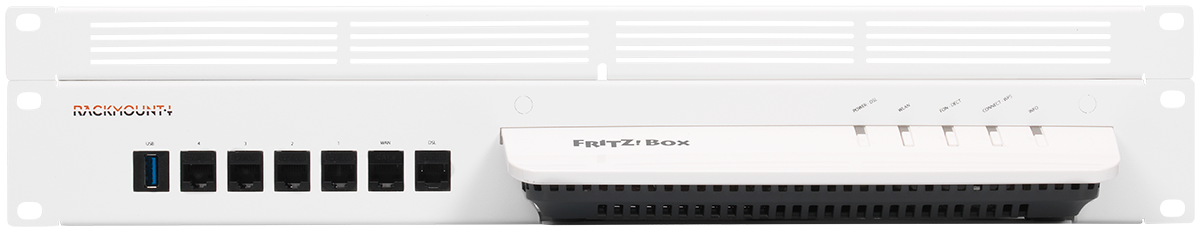

The RM-FB-T7 gives you the ability to mount your AVM FRITZ!Box desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

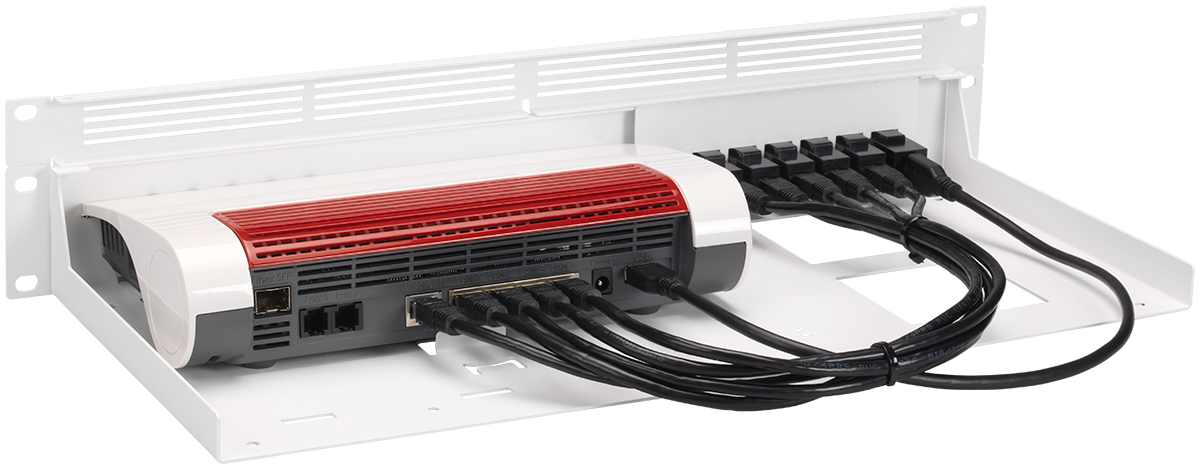

Assembly will take about 5 minutes. Simply slide your AVM FRITZ!Box device in the kit, place the retainers, connect the supplied cables and keystones, and fix the power supply to the rack.
Other colors can be delivered on a project basis.
|Color||RAL 9003 White|
|Height||1.3U / 2U
2U with the supplied front plate
(height x width x depth)
|59 x 482 x 217mm|
|Number of connections brought to the front||7|
|Console port to the front||No|
|Cables||6x 0.5m cables|
|Couplers||6x RJ45 couplers
1x USB Couplers
|Supported Models||- AVM FRITZ!Box 5590
- AVM FRITZ!Box 7590 AX
|What's in the box?||- 1x FB Rack + couplers
- 1x Rackmount.IT front plate
- Assembly materials
- Installation guide
