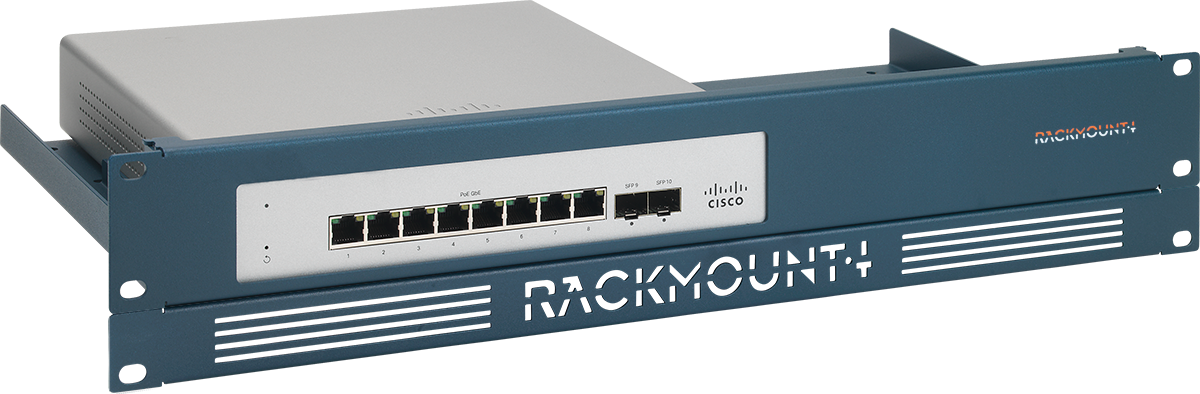

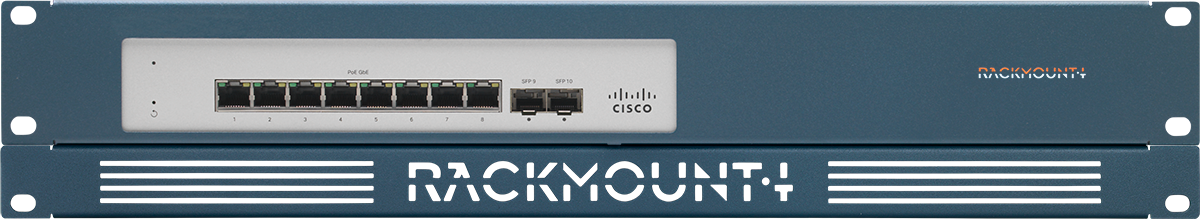

The RM-CI-T7 gives you the ability to mount your Cisco Meraki Switch in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

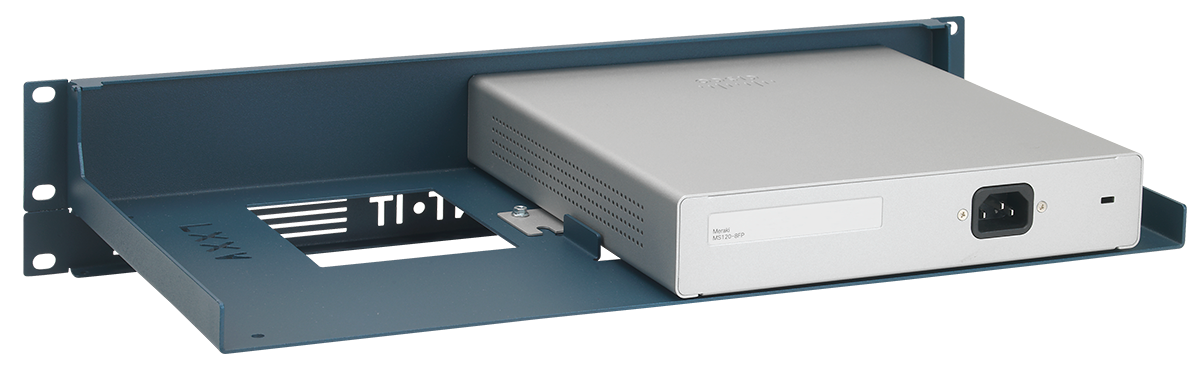

Assembly will take about 5 minutes. Simply slide your Meraki Switch in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Other colors can be delivered on project basis.



Specifications

Color RAL 9005 Jet Black
Height 1.3U
2U with the supplied front plate
Dimensions
(height x width x depth)
59 x 482 x 217mm
Number of connections brought to the front 10
Console port to the front Yes
Cables None
Couplers None
Supported Models - Cisco Meraki MS120-8FP-HW
What's in the box - 1x Cisrack
- 1x Rackmount.IT front plate
- Assembly materials
- Installation guide
EAN 8718868918659
UPC 852754006650



Logo


The Rackmount.IT family strives to make high quality rack mount kits for all major desktop firewall manufacturers. Our rack mount kits offer a higher value, at a lower price! Front connections, secured power supply, custom cut-outs for airflow and a perfect fit for your specific firewall.
